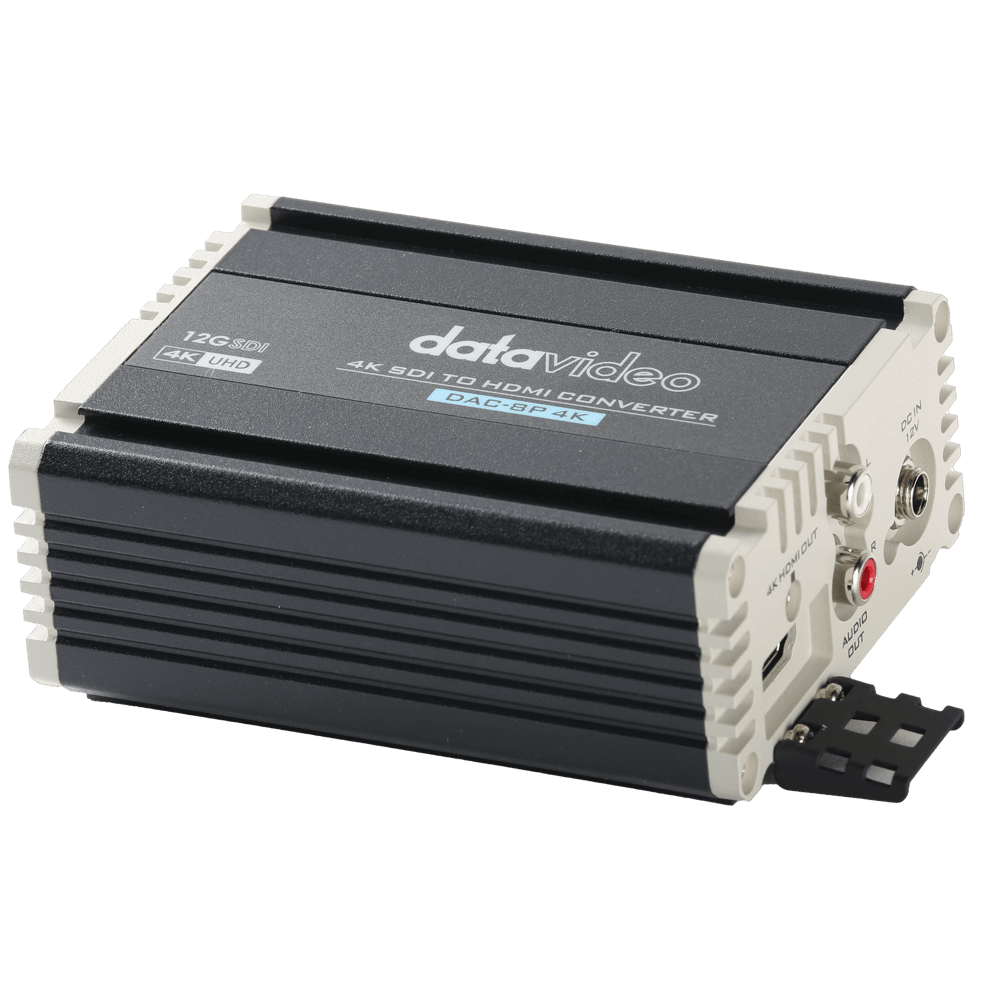

4K SDI to HDMI Converter DAC-8P 4K

- Нет в наличии
- Код: DAC-8P 4K
Цену уточняйте
Описание
The DAC-8P 4K is broadcast quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160).
The DAC-8P 4K is also very easy to use. It is a plug and play converter, and there is no setting needed from your laptop.
In addition to the converted 4K HDMI output, there is a 12G-SDI loop thru for sending a signal to other devices in your workflow.
DAC-8P 4K will regenerate the SDI video, and provideo less SDI jitter to improve SDI eye pattern. DAC-8P 4K allows for a long cable transmission.
DAC-8P 4K provides a video converter from SDI to HDMI, and it also provides you an additional de-embedded 2-channel RCA analog audio output from SDI video to your live production.
HDMI Deep Color supports more realistic and stunning of the video. Much better video quality than the regular HDMI video.
Super sturdy and durable. The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Find an authorized reseller
Характеристики
Основные | |
---|---|
Производитель | Durable |
Пользовательские характеристики | |
Reclock | Да |
Updates and Configuration | USB Type C x 1 |
Аудио выходы | RCA x 2 (Unbalanced Audio L/R), HDMI embedded audio, 24-bit, 8-channel |
Аудиовходы | SDI embedded audio, 24-bit, 16-channel |
Вес | 0.3 kg |
Видео выход | 1x HDMI 2.0 with embedded Audio |
Видеовход | 12G-SDI x 1 |
Выбор аудио формата | ---- |
Выходные разрешения | Automatically matches the HD, 3G and 12G SDI video input |
Кабельный привод SDI | Да |
Комплектующие | 1 x DAC-8P 4K, 1 x AD Switch DC 12V |
Мощность | DC 12V, 8.64W |
Номер модели | DAC-8P 4K |
Перебор | 1 |
Поддерживаемые форматы видеовхода | 4096x2160p: 60/59.94/50/30/29.97/25/24/23.98 , 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98 , 1080p: 60/59.94/50/30/29.97/25/24/23.98 , 1080i: 60/59.94/50, 720p: 60/59.94/50 |
Преобразование | 12G-SDI to HDMI 2.0 |
Рабочий диапазон температуры | 0~40 °C |
Размер (ДхШхВ) | 112 x 85 x 45 mm |
Усиление звука | ---- |
Эквалайзер | Да |
