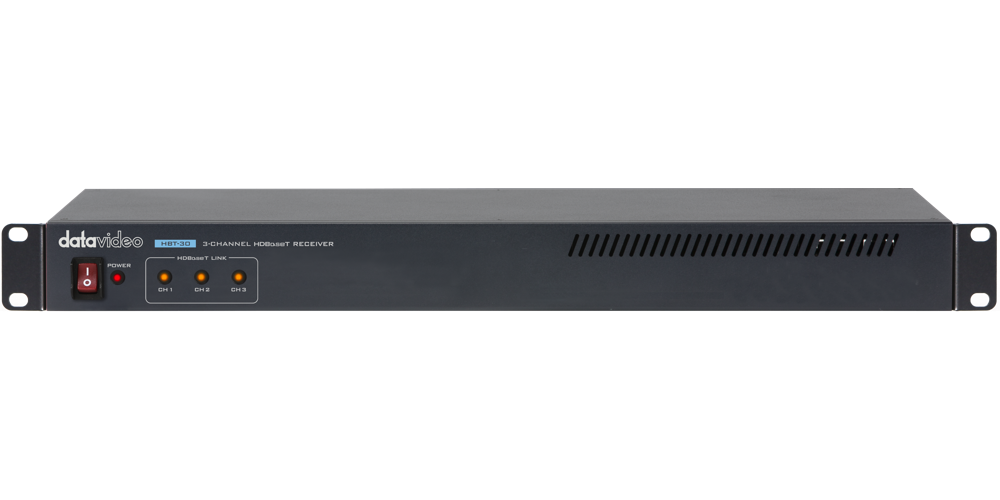

3-Channel HDBaseT Receiver with HDMI Outputs HBT-30
Цену уточняйте
- Нет в наличии
- Код: HBT-30
HBT-30 can power the PTZ video cameras via PoE, transmit signals over a single ethernet cable to and from the camera and can be used to remotely control various camera parameters such as iris, presets and etc. Most importantly, it can output HDMI signal to your switcher.
HBT-30 transmits HDMI signal (up to Ultra HD 4K 50/60 ) as well as camera control. With the HBT-30, the system can be integrated as a camera controller, video switcher, and ISO recorder.
Remote control of camera functions via RS-422 or DVIP with HDMI video transmission (up to Ultra HD 4K 50/60 ) up to 3 cameras simultaneously up to 100 meter.
Control up to three HDBaseT cameras from a single receiver. With HBT-30, you no longer need individual HDBaseT receiver boxes per camera.
The chart above shows the product's direct compatibility with other HDBaseT products.
HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!
Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflow benefits that HDBaseT technology offers.
Contact us to get more help!
| Пользовательские характеристики | |
|---|---|
| DVIP | RJ-45 x1(input) |
| HDBaseT Расстояние | 1080p@60 up to 100M by CAT. 6A cable , 4K@60 up to 100M by CAT. 6A cable |
| PoE Выход | 65W per channel |
| RS-422/ RS-232 | RJ-45 x 3 (RS-232/RS-422) |
| Аудио поддержка | Объемный звук [до 7.1 каналов) или цифровой стереозвук |
| Вес | 1.8Kg |
| Видео процесс | 4K60 4:4:4, 8bit, 4K60 4:2:2 10bit, 4K60 4:2:0 10bit |
| Видео/Аудио выход | HDMI 2.0 x 3 |
| Видео/аудио вход | HDBaseT (RJ-45) x 3 |
| Комплектующие | 1 x HBT-30 main unit, 1 x AC cord, 1 x DC 56V power adaptor |
| Мощность | DC IN: DC 56V |
| Номер модели | HBT-30 |
| Поддерживаемый формат видео | 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98 , 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50 , 525i: 59.94 NTSC, 625i: 50 PAL |
| Полоса пропуска видео | Single-link 594MHz [18Gbps] |
| Рабочий диапазон температуры | 0~40 °C |
| Размер (ДхШхВ) | 440 x 125 x 44.5 mm |
| Совместимость с HDMI | HDMI Deep Color & 4K@60 |
| Соответствие HDCP | HDCP 2.2/1.4 (Bypass) |
- Цена: Цену уточняйте
