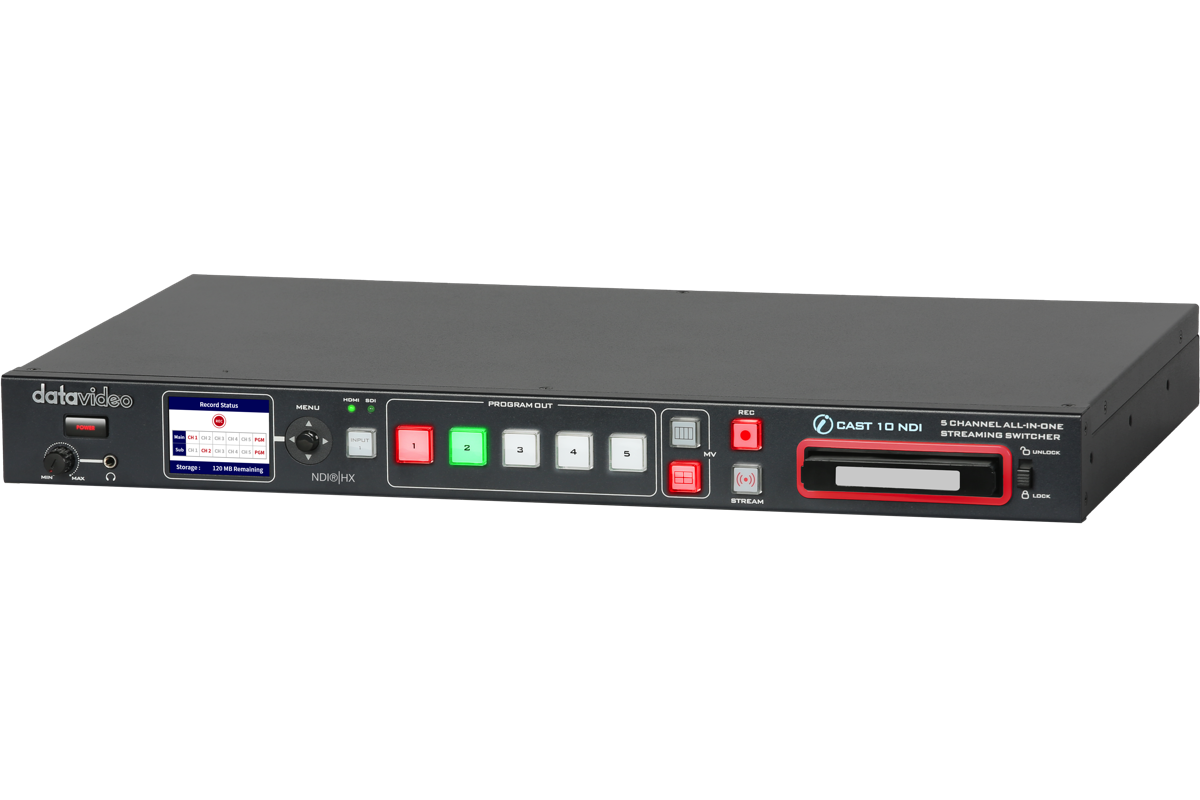

5-Channel All-in-one Streaming Switcher iCAST 10NDI

В наличииКод: iCAST 10NDI

Цену уточняйте

Написать
5-Channel All-in-one Streaming Switcher iCAST 10NDI
5-Channel All-in-one Streaming Switcher iCAST 10NDI В наличии
Написать
Перезвонить мне
  • +7 (707) 270-67-76 +7 (707) 270-67-76
Перезвонить мне
  • +7 (707) 270-67-76 +7 (707) 270-67-76

Seamless switching

Multichannel audio mixing

Video Streaming

Multi-Camera Video Recording

Character Generation

System Control

iCAST 10NDI has five video inputs with one SDI/HDMI selectable port, three HDMI only ports and one USB 3.0 port. iCAST 10NDI accepts videos from various professional cameras, laptops and document cameras.

You can also receive IP videos via an RJ-45 port. IP videos are streamed using RTMP(S) or SRT protocol. With a variety of video interfaces, you no longer need to worry about compatibility of different video devices.

iCAST 10NDI provides an intuitive preview of your output sources. You can view them either horizontally or vertically (a new technology for viewing videos on mobile devices) and preview these mode changes on a Multiview screen.

In addition to displaying a full screen view of the program out video, you can also stream the four input videos live
to your audience.

The iCAST 10NDI offers five Multiview layouts to allow you to show your input videos all at the same time. The videos can be streamed to all corners of the world and your audience can, with zero delay, participate in your events using a receiver/decoder, personal mobile device, or a computer.

You no longer need multiple devices to stream your video to multiple platforms. This is now achievable with one iCAST 10NDI.

iCAST 10NDI supports NDI | HX input and output. Another alternative to broadcast a quality low latency video transmission.

One Ethernet Cable with NDI® | HX Technology

There is no need for multiple cables and complicated setup. Single-wire concept helps you to decode video and audio over only one Ethernet cable for live video switching.

NDI® is a registered trademark of Newtek, Inc.

Of all videos streamed, up to 50% of the videos are viewed on mobile devices and 94% of the mobile users hold the phone vertically to view the video. iCAST 10NDI provides vertical streaming which can be generated with only a few basic settings.

Video latency often results when there is insufficient network bandwidth. iCAST-10 supports SRT protocol which mitigates packet loss when the network becomes unstable. Sometimes RTMP may give you stuttering viewing experience but SRT will solve your problem.

dvCloud, a paid service, is a professional streaming platform developed by Datavideo. Once you've logged in, you can manage all the streaming channels that you have created. You can stream your video to at most 25 platforms at the same time without any time limit while backing up the video on the cloud automatically for future downloads. iCAST 10NDI, SRT and dvCloud form a low latency, secure and reliable streaming workflow.

A protruding frame like LED indicator allows you to easily see its color. A red indicator means that the video is being recorded and a green indicator appears when the record function enters standby mode.

The 2" LCD screen on iCAST 10NDI allows you to view the record status of all video channels.



ISO recording refers to the ability to create isolated recordings of your five camera inputs and one PGM output for video backup and adding visual effects during post production. ISO recording allows you to save your data locally or on a file server.

A built-in professional recorder records using H.264 video encoding with configurable resolution, frame rate, video bitrate, etc.

Supports up to Full HD 1080p50/60 broadcast record quality with a low file size so it is often used for long time recording. Even with a high data compression ratio, fine details of the image can still be retained as well as high recoverable color information.

In addition to embedded audio, we have also provided input ports for external audio such as XLR port for connecting microphones, and RCA terminals for audio players.

The Web audio, the most popular audio source, is another external audio source. You can easily perform professional audio mixing with iCAST 10NDI and at the same time switch between AES and EBU modes so that your output audio will always be compatible with various audio systems in different countries without issues such as unstable audio volume and the audio and video out of sync error.

XLR and stereo RCA ports for external analog audio and a 3.5 mm headphone jack for audio monitoring.

iCAST 10NDI is capable of independently delaying each audio channel by adjusting the delay time in order to eliminate the audio and video out of sync error.

iCAST 10NDI allows you to add graphic elements such as logos, titles, text, and images to any input video channels or the program output. You can add course chapters text or workflow diagram images to your program.

Transcribe audio by entering subtitles line by line using News CG then play subtitles in real time by simply tapping the space bar on the keyboard.

Highlight the information that you wish to convey to your audience. You can also transcribe audio by entering subtitles line by line using News CG after which you will be able to play subtitles in real time by simply tapping the space bar on the keyboard controller.

iCAST 10NDI supports multiple control methods which are DVIP, RS-232, Web UI and the LCD screen. The LCD screen can be found on the front panel of the device. DVIP is a control protocol developed by Datavideo for controlling peripheral devices such as cameras, switchers and recorders, allowing you to create a complete video production environment.

Connect TPC-700, an external touch panel controller, via DVIP to gain access to an intuitive and easy-to-use graphical user interface.

The iCAST 10NDI APP is installed on the TPC-700 touch panel controller along with many frequently used control settings. The responsive touch panel allows you to easily switch between different control modes, adds versatility to video production and reduces operation complexity.

   Contact us to get more help!

Характеристики
Пользовательские характеристики
DSK N/A
Still Store N/A
Sync / Reference In/Out N/A
USK N/A
Аналоговый аудиовход XLR Balanced audio x2 , RCA Unbalanced audio x 1 pair , SDI embedded audio , HDMI embedded audio , IP Audio (RTSP AAC-ADTS, PCM) , (External and embedded audio mixable)
Аналоговый аудиовыход 3.5mm x1 (headphone, PGM audio monitoring)
Вес 2.9 kg
Видеовход 3G/HD/SD-SDI x1 (BNC 75 ohm) , HDMI 1.4 x4 , (Channel 1 as SDI/HDMI selectable) , USB 3.0 x1
Видеовыход 3G/HD/SD-SDI loop-through x1 , HDMI 1.4 x1 (PGM) , HDMI 1.4 x1 (Multiview) , RJ-45 female x2 (10/100/1000M Ethernet) (LAN & WAN)
Вставка логотипа Да
Встроенный аудиомикшер Да
Встроенный многоканальный выход для мониторинга HDMI x1
Выход с пониженным преобразованием 1080p output
Графический интерфейс 4 via HDMI
Итоговый вывод N/A
Калибровка задержки звука Each channel delay time: 0-3000ms
Картинка в картинке Yes (PGM)
Кодирование аудио AAC-LC, Sample rate: 48KHz, 16bit, AAC-LC , Sample rate: 48KHz, 16bit , Configurable bit rate: 128K or 256K or 384K
Кодирование видео H.264
Комплектующие 1 x iCast 10NDI main unit, 1 x DC 12V Power Adaptor, 2 x 1U Rack Mount Ear, 6 x M4 Screws for Rack Mount Ear, 1 x 2.5” Removable HDD/SSD Enclosure, 4 x Screws for 2.5 Removable HDD/SSD Enclosure, 1 x Blank Label, 1 x SATA to USB 3.0 Cable
Контроллеры камер N/A
Корпус 1RU rack-mount mainframe
Маршрутизируемый ввод/точка пересечения N/A
Микс HD; Источник SD Да
Мощность DC 12V 24W
Номер модели iCAST 10NDI
Обновление прошивки Web UI (network)
Особые возможности Vertical video: crop or rotate , Vertical video Multiview
Потоковый протокол l DHCP client, l TS over UDP (unicast & multicast), l RTSP over HTTP/TCP/UDP, l RTMP (Publish)/RTMPS, l HLS, l SRT Caller and Listener, l Web RTC (encode/decode), l NDI, Hx
Предварительный просмотр перехода N/A
Рабочий диапазон температуры 0~40 °C
Размер (ДхШхВ) 440 x 284 x 44mm
Создатель титров Web GUI
Стандарты HDTV HD & SD
Удаленное управление Веб-интерфейс для настройки и управления системой, управление последовательным портом: RS-232 (RJ-45)
Файловая система записи FAT, NTFS, exFAT
Формат видео Input: , 1080p60/59.94/50,, 1080p30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 480i59.94, 576i50, , Output: , 1080p60/59.94/50→1080p60/59.94/50, 1080p30/29.97/25/24/23.98→1080p30/29.97/25/24/23.98, 1080i60/59.94/50→1080p30/29.97/25, 720p60/59.94/50→720p60/59.94/50, 480i59.94, 576i50→480p29.97, 576p25, (not supporting interlace)
Формат файла записи MP4
Хранилище SATA (6Gb/s)
Хромакей N/A
Эффекты Обрезка
  • Цена: Цену уточняйте
