4K Multi-Channel Touch Screen Region of Interest Switcher KMU-200

  • В наличии
  • Код: KMU-200

Цену уточняйте

+7 (707) 270-67-76
возврат товара в течение 14 дней по договоренности
4K Multi-Channel Touch Screen Region of Interest Switcher KMU-200
4K Multi-Channel Touch Screen Region of Interest Switcher KMU-200В наличии
Цену уточняйте
+7 (707) 270-67-76

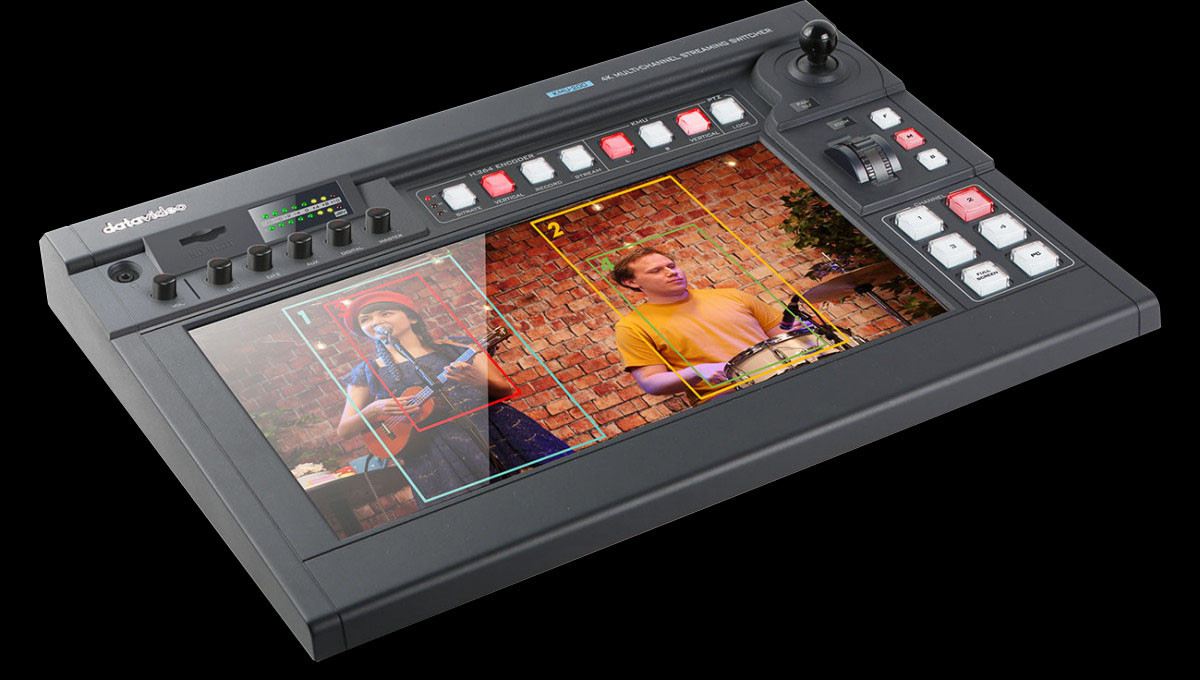

KMU-200 is an all-in-one solution for producing full HD virtual multi-camera video using a single 4K camera.

KMU-200 uses a large touch screen for operation using similar gestures used on any tablet or phone. By pinching and swiping, you control up to 4 cutouts of a 4K image and as if the footages comes from 4 different cameras. Use hardware control to precisely position the cutouts like a regular PTZ camera.

KMU-200 features a dual streaming encoder making it possible to go live on all the well known streaming platforms directly from the device. Easily record on SD cards and you can directly bring the recording to your favorite editing suite.

KMU-200 allows you to produce virtual multi-camera videos easily without any help.

4K cameras are widely available and content online doesn’t require the full 4K resolution for streamed content.  A single 4K camera can be utilized to obtain 4 cut outs or regions of interest.

The KMU-200 is perfect for interview application with small panels or smaller houses of worship.  With Social distancing becoming commonplace, the KMU-200 reduces the amount of cameras needed to get your production streamed live.

Users can easily control the video cutout sources by using the touch screen and well known gestures such as pinching and swiping. The joystick, zoom knob and hardware buttons can also be used alternatively.

Make your live-streaming look professional with only six buttons to create four virtual camera footage and six different shots.

When using the KMU-200, you can switch between four different virtual cameras, the full shot and the extra HDMI input. Operating the unit is very easy this way.

Easily switch between horizontal and vertical mode/video production mode
Vertical video production is in favour of those who prefer to watch the videos on the vertical mode.

You can simply alter this mode by rotating the screen. KMU-200 is natively able to produce vertical video by pressing a single button, effectively converting the whole unit from 16:9 to 9:16 production.

While your show is live, KMU- 200 helps you to stream and live recording at the same time. Provide you the full turn-key solution.

The additional HDMI input allows the option to show an additional camera angle or to connect a computer's display-output to the KMU-200 for presentation software.

The HDMI loop out allows for production directors to have direct monitoring of the presentation input. All HDMI inputs have built-in strain relief bars to make sure nothing is left to chance during your production, by reducing the chances of cables becoming unplugged

Four-channel embedded audio mixer with RCA and XLR inputs, and also provide you the audio volume adjustment.

Live streaming video directly from the KMU-200 is easier than ever. Just simply connect the KMU-200 to your local network, connect your PC to the same network and configure the streaming encoder.

After that you can simply start streaming by pressing the stream button.
The built-in streaming encoder remarkably reduces, the need for different procedures and equipments.

Get the most out of your streaming hardware using DVCloud. The KMU-200 is seamlessly compatible with Datavideo’s DVCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.

For more information on DVCloud, please visit the product page or sign up directly on www.dvcloud.tv

Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility and packet loss. Streaming RTMP over unreliable networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently. As a result, your viewers will experience a better stream, with less buffering and pixelization. Click Here to learn more about what SRT can do for you.

dvCloud Professional (please refer to www.dvcloud.tv for more info) can stream to 25 platforms simultaneously. It can stream to either different platforms or different channels of the same platform. Thus, even if your local network bandwidth is limited, you can still stream to multiple platforms at the same time with dvCloud.

dvCloud provides powerful real-time statistics for all video sources and destinations so you can be sure every frame reaches its destination:

  • Monitor your video sources and be sure every frame makes it to the cloud
  • Leave nothing to chance, check your networks performance and adjust your streaming settings before you go live
  • Monitor your NVD-3X MARK II decoders and be sure every frame makes it to the decoder
  • Monitor your streaming destinations in real time with our easy-to-use traffic light system
  • All statistics are graphed, you can see the previous 10 minutes statistics.

Learn how to use the KMU-200 to produce live streams in vertical format.

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the KMU-200 is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.

   Find an authorized reseller


Пользовательские характеристики
Audio Sampling---
Reference Input---
Support Video Output Resolution1920 x 1080p 50/59.94/60, 1280 x 720p 50/59.94/60
Аудиовход2x XLR(Mic), 2x RCA
Аудиовыход2x Unbalanced RCA
Битрейт потокового видеоRecord Only: Up to 16Mbps (1080p50/60), Stream Only: Up to 10Mbps (1080p50/60), dual stream, Record+Stream: 36Mbps (1080p50/60)
Вес 4.3 kg
Видеовход1x HDMI 2.0, 1x HDMI 1.4 with Loop through
Видеовыход2x HDMI 1.4
Встроенный аудиомикшерДа, 4 канала
Интерфейс управления---
Комплектующие1 x KMU-200 Main Unit, 1 x AD Switch DC 12V with AC Cord
Многоэкранный выход---
Многоэкранный режим---
Номер моделиKMU-200
Носитель для записиSD Card (Class 10 above)
Потоковое кодированиеH.264/AVC, Main/High Profile
Потоковые протоколыTS через TCP/UDP (одноадресная и многоадресная рассылка), RTSP через HTTP/TCP/UDP (элементарная потоковая передача RTSP), RTMP/RTMPS (публикация), HLS, SRT
Предварительный просмотр14” Capacitive Touch LCD
Рабочий диапазон температуры0~40 °C
Размер (ДхШхВ)438 x 331 x 114 mm,
Режим потокового аудиоStereo: 64~384Kbps, Mono: 32~192Kbps
Режим скорости потокового видеоCBR
Сетевой интерфейс1x RJ45 (10/100Mbps Ethernet)
Стандарты HDTVUHD & HD
Файловая система храненияNTFS, FAT, exFAT
Формат видео4:4:4 / 4:2:2 / 4:2:0
Формат записанного файлаMP4
ЭлектропитаниеDC 12V, 52W

Информация для заказа

  • Цена: Цену уточняйте
