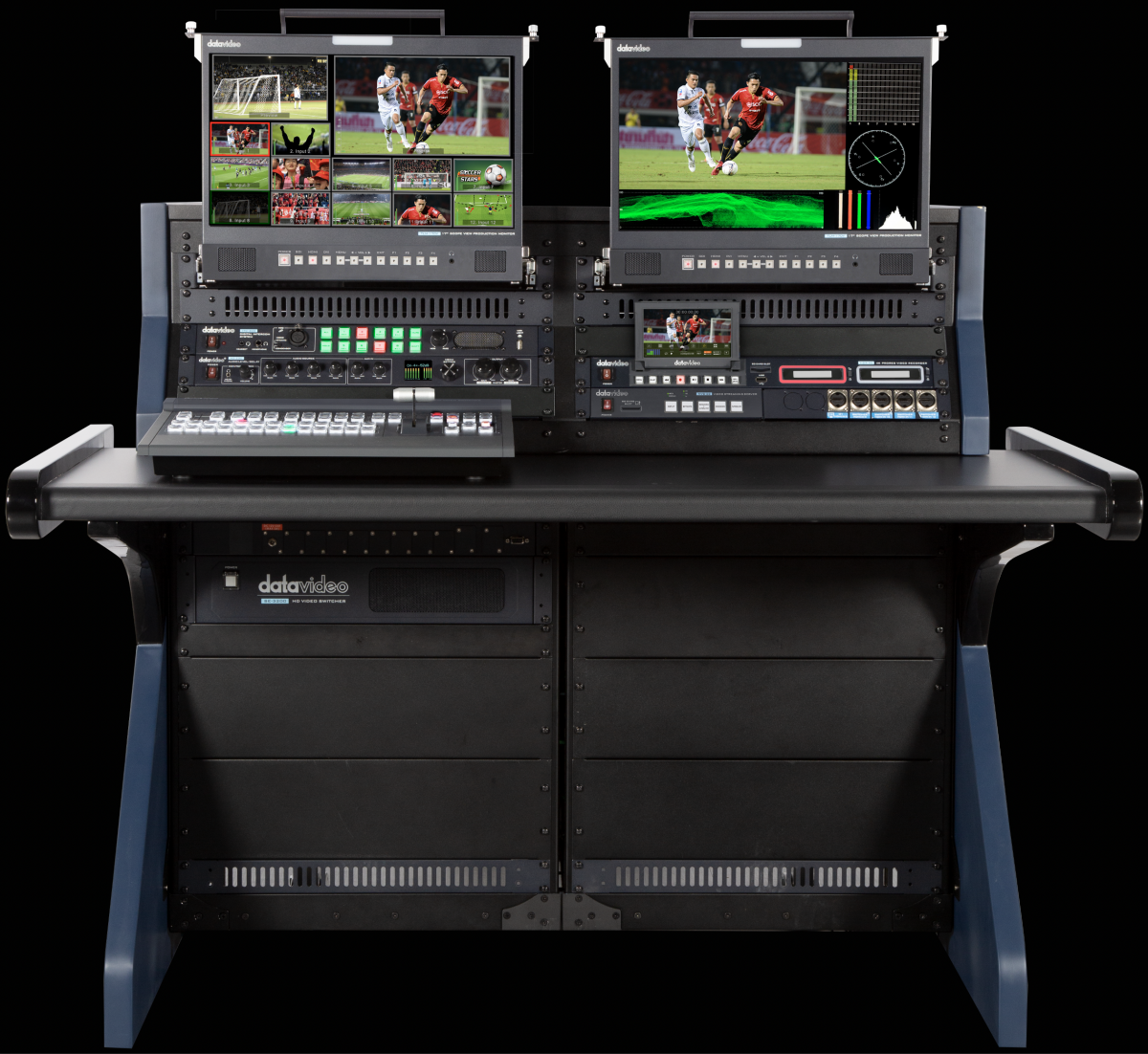

HD 12-Channel Mobile Video Studio OBV-3200

  • Нет в наличии
  • Код: OBV-3200

Цену уточняйте

+7 (700) 750-08-99
возврат товара в течение 14 дней по договоренности
HD 12-Channel Mobile Video Studio OBV-3200
HD 12-Channel Mobile Video Studio OBV-3200Нет в наличии
Цену уточняйте
+7 (700) 750-08-99


A complete solution that is equipped with a switcher, intercom, camera control, recording, streaming, audio delay, scope view monitor and power supply.

The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.

The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.

The OBV-3200 supports up to 12 inputs in resolutions up to 1080p50/60, and it has a total of 9 outputs in HDMI and SDI.

Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field.

Mobile Video Studios are all-in-one video production studios in a rugged aluminum case and can be customized to fit in an OB Van.

The ITC-300 provides 8-Way talkback and bi-colour tally indicators.

Large 5" LCD Touch screen for operating and monitoring.

Control up to 4 cameras from one CCU-200 Camera Control Unit combined with the supplied AD-3 units.

NVS-33 is a small, easy-to-use video streaming and recording equipment designed for professional video producers.

The encoder supports different bitrates for recording and streaming, allowing user live stream video to YouTube, Facebook and many other platforms.

Recording to SD Card with either NTFS and FAT file system to keep the continuous recording with a file size limit of 4GB.

Get the most out of your streaming hardware using DVCloud. The OBV-3200 is seamlessly compatible with Datavideo’s DVCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.

For more information on DVCloud, please visit the product page or sign up directly on www.dvcloud.tv


Пользовательские характеристики
100m SDI Repeater----
17.3" Rack Mount LCDTLM-170VM x2
4K Multicamera Processor----
CB-22H/23H Repeater----
HDMI CableCB-60/61/62 (30m/50m/100m)
ITC/Tally Cable----
SDI/ITC Cable----
Аудио микшерAD-200
Векторная область SDIBuilt-in TLM-170VM
Вес 118 kg
ВидеорекордерыHDR-90 x1 (OBV-3200A), HDR-70 x1, HDR-90 x1 (OBV-3200B)
Возврат видео (8-канальное резюме)----
Интеграция стоечной системы17RU Mobile Rack Table, 110 x 100 x 111 cm
Интерком/Табличная системаITC-300 w/4 Belt Pack
Комплектующие1 x OBV-3200 product, 4 x AD-3 Unit, 4 x RMC-240 Unit, 5 x Headset, 1 x USBLED light, 4 x φ3.5 Plug to φ3.5 Plug Cable, 4 x φ2.5 Plug to φ3.5 Plug Cable, 2 x AC Power Cord, 5 x 120mm cable tie, 10 x 200mm cable tie, 1 x Y type 2 pin MOLEX cable, 2 x 2.5" HDD enclosure, 2 x ISO screw 2*6mm, 4 x Cable & Cable Reel, 1 x SATA to USB Cable, 2 x HD sticker,
Многокамерный блок управленияMCU-400 / MCU-200 (optional)
Номер моделиOBV-3200
Рабочий диапазон температуры0~40 °C
Распределитель питания (8-контактный)PD-2A
Распределитель питания камерыPD-5
Регулятор мощности камеры----
Резервная мощность (360 Вт)----
Сервер потокового видео H.264NVS-33 x1 (OBV-3200A), NVS-40 x1 (OBV-3200B)
Сетевой медиаплеер----
Система управления камеройCCU-200 x1
Усилитель HD/SD SDI----
Цифровой видеомикшерSE-3200

Информация для заказа

  • Цена: Цену уточняйте
