HD 12-Channel Digital Video Switcher SE-3200

В наличииКод: SE-3200

Цену уточняйте

Написать
HD 12-Channel Digital Video Switcher SE-3200
HD 12-Channel Digital Video Switcher SE-3200 В наличии
Написать
Перезвонить мне
  • +7 (707) 270-67-76 +7 (707) 270-67-76
Перезвонить мне
  • +7 (707) 270-67-76 +7 (707) 270-67-76

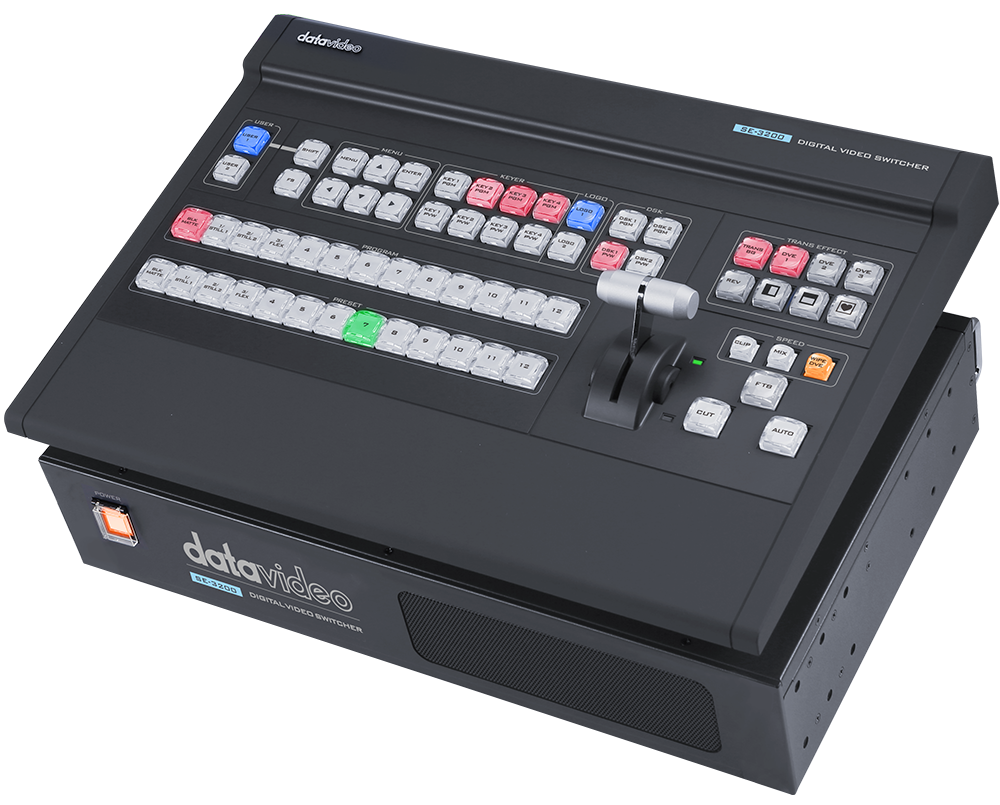

The SE-3200 is a lightweight switcher solution with the main unit mountable on the 19 inch rack. The control keyboard panel can be placed on a flat surface or built inside an outdoor broadcast van.

The SE-3200 switcher also has powerful, easy-to-use effects, such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.

The SE-3200 is designed for large scale event production.  The switcher equips with intuitive and reliable physical buttons.

The SE-3200 switcher is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.



SE-3200 switcher advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.

Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects, and you can also import your own Stinger Transitions & Animated Logos.

All 3200 series switchers have built-in support for Datavideo CG software.

This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.

Connect up to two displays to all 3200 series switchers for a dual Multiview output. Choose from many pre-defined multi-view layouts or define your own!

Flex Source gives you nearly the power of a 2 M/E switcher, in a 1 M/E switcher!

Create a complete extra layer of image composition. These complex setups can be saved and recalled with the touch of a button.

The Flex Source provides 4 PIPs with 3D Borders, with Background layer and an additional Key Layer allowing many sophisticated.

Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.

Create up to 8 picture-in-picture frames that can be active at the same time. Picture-in-picture frames are fully adjustable in size and position and have various border options including our unique 3D borders.

Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!

There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.

   Find an authorized reseller

Характеристики
Пользовательские характеристики
DSK 2x DSK support Lumakey & Linear key (Key / Fill)
Still Store 999+
Sync / Reference In/Out Built-in Genlock, Support external sync with loop thru
USK 4x Keyer support Chromakey/ Linear/ Luma Key
Аналоговый аудиовход 4x Balanced XLR
Аналоговый аудиовыход 2x Balanced XLR
Вес 4 kg
Видеовход 8x SDI, 4x HDMI
Видеовыход 6x SDI Outputs assignable:, Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source, 3x HDMI assignable:, Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
Вставка логотипа 2
Встроенный аудиомикшер ----
Встроенный многоканальный выход для мониторинга HDMI & SDI assignable
Выход с пониженным преобразованием 1x SDI
Графический интерфейс 4 via HDMI
Итоговый вывод 1x D-sub 25pin, dual color
Калибровка задержки звука До 16 полей или 8 кадров на канал
Картинка в картинке 8 (4x PIP, 4x Flex Source)
Кодирование аудио ----
Кодирование видео ----
Комплектующие 1 x SE-3200 Main Unit, 1 x SE-3200 Control Board, 2 x AD Switch DC 12V, 1 x AC Cord, 1 x DB9P TO DB9P Cable, 12 x Screw, 2 x 2U Ear Rack,
Контроллеры камер ----
Корпус 2 units, 2RU rack-mount mainframe
Маршрутизируемый ввод/точка пересечения Все 12, повторяемые
Микс HD; Источник SD ----
Мощность DC 12V, 69W
Номер модели SE-3200
Обновление прошивки Ethernet
Обработка видео SDI: 4:2:2, HDMI: YUV 4:2:2, RGB: 4:4:4
Особые возможности Включены 4 пользовательских пресета памяти, бесплатный виртуальный набор и переход резкости
Переключение А+В Да
Поддержка встроенного цифрового звука Input 2 channels, Output 4 channels
Потоковый протокол ----
Предварительный просмотр перехода Full transitions preview
Рабочий диапазон температуры 0~40 °C
Размер (ДхШхВ) 433 x 312 x 76 mm (switcher), 432 x 252 x 88 mm (main unit)
Создатель титров Yes, CG-200 software free download
Стандарты HDTV Full HD
Удаленное управление RS-232 / DVIP (Ethernet)
Файловая система записи ----
Формат видео 1080p 50/59.94/60Hz, 1080i 50/59.94/60Hz, 720p 50/59.94/60Hz
Формат файла записи ----
Хранилище ----
Хромакей 4
Эффекты DVE, FTB, Cut, 32 Wipe with border
