Audio In/Out
|
Input: Embedded Audio (48KHz sampling), Output: Analog stereo (Phone Jack), Speaker x 2 (3W)
|
|
Dimension (WxHxD)
|
403 x 305 x 37 mm
|
|
Safty Marker
|
Да
|
|
Вес
|
5.2kg
|
|
Видеовход
|
1 x 12G SDI, 2 x HDMI (2.0)
|
|
Дисплей
|
17.3" LED Backlit
|
|
Комплектующие
|
1 x TLM-170KR product , 1 x AD Switch DC 12V , 1 x Monitor Stand , 2 x Velcro
|
|
Корпус
|
Rack Mount
|
|
Маркер аспекта
|
Да
|
|
Мощность
|
DC 12V, 40.1W
|
|
Номер модели
|

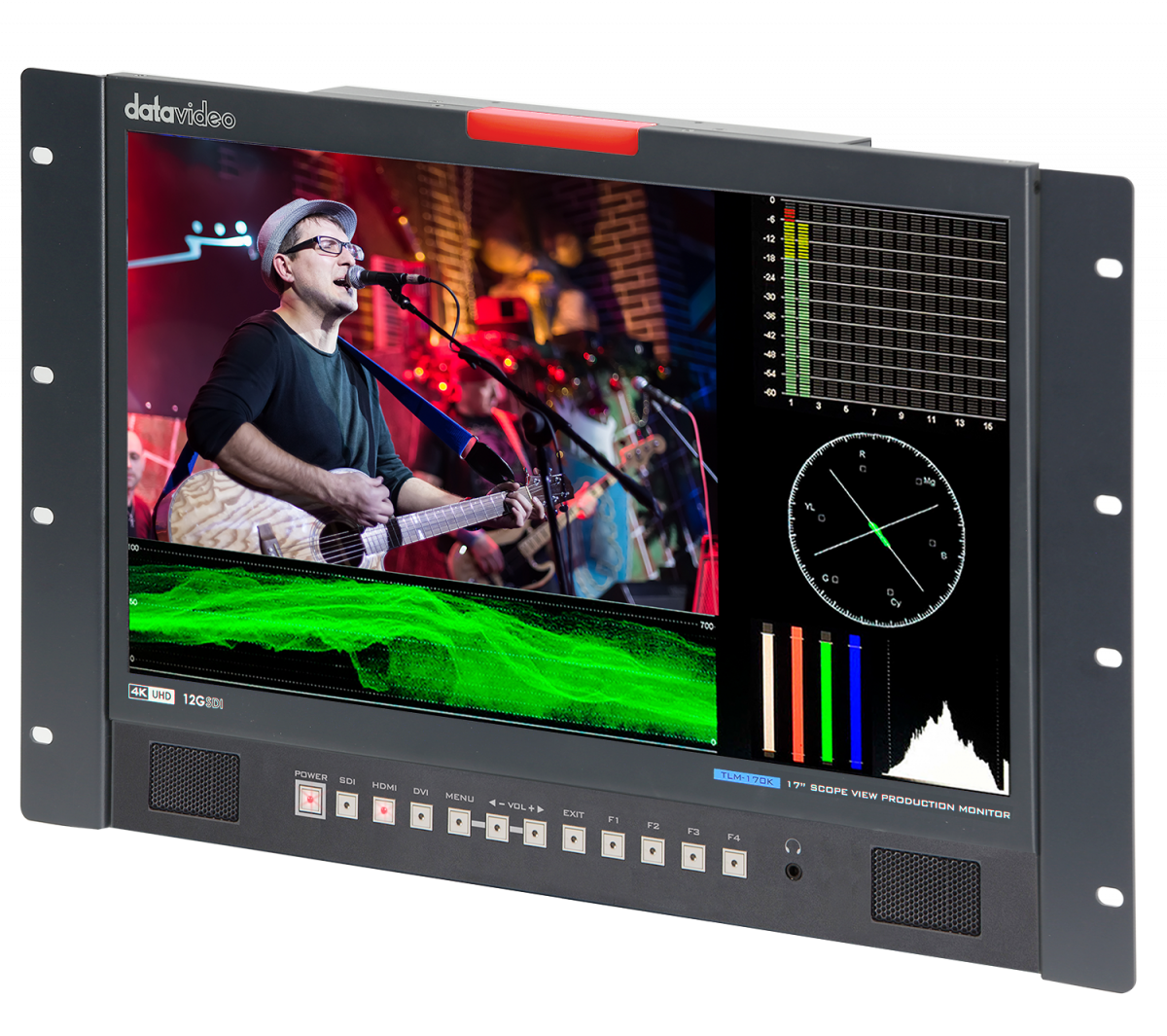

TLM-170KR
|
|
Особые возможности
|
waveform, , vector scope, , Focus Peaking, , False Color, , Exposure (Zebras), , Histogram, , HDR / SDR, , Time Code, , Audio Vector, , Camera Log, , Gamma, Marker, , Pixel to Pixel, , Zoom, , H/V Delay, , DSLR, , Freeze, , Image Flip, , Check Field, , Level Meter, , Color Bar, , Color Calibration.
|
|
Перебор
|
1 x 12G SDI, 1 x HDMI (2.0)
|
|
Поддерживаемые входные разрешения
|
SDI: , 4096x2160p (23.98/24/25/29.97/30/50/59.94/60), 3840x2160p (23.98/24/25/29.97/30/50/59.94/60), 4096x2160Psf (23.98/24/25/29.97/30), 3840x2160Psf (23.98/24/25/29.97/30), 1920x1080p (23.98/24/25/29.97/30/50/59.94/60), 1920x1080i (50/59.94/60), 1920x1080Psf (23.98/24/25/29.97/30), 1280×720p (23.98/24/25/29.97/30/50/59.94/60), 525i, 625i, HDMI: , 4096x2160p (23.98/24/25/29.97/30/50/59.94/60) , 3840x2160p (23.98/24/25/29.97/30/50/59.94/60) , 1920x1080p (23.98/24/25/29.97/30/50/59.94/60) , 1920x1080i (50/59.94/60) , 1280×720p (23.98/24/25/29.97/30/50/59.94/60) , 720 x480i (NTSC), 720 x576i (PAL) , 640 x800, 800 x600, 1024 x768, 1280 x800
|
|
Рабочий диапазон температуры
|
0~40 °C
|
|
Разрешение
|
3840 × 2160
|
|
Светодиодный индикатор
|
Live (Red), Cued (Green)
|
|
Соотношение сторон
|
09:04.4
|
|
Угол обзора
|
(H) +89/-89°, (V) +89/-89°
|
|
Яркость/Контраст
|
300cd/m², 1000:1
|
