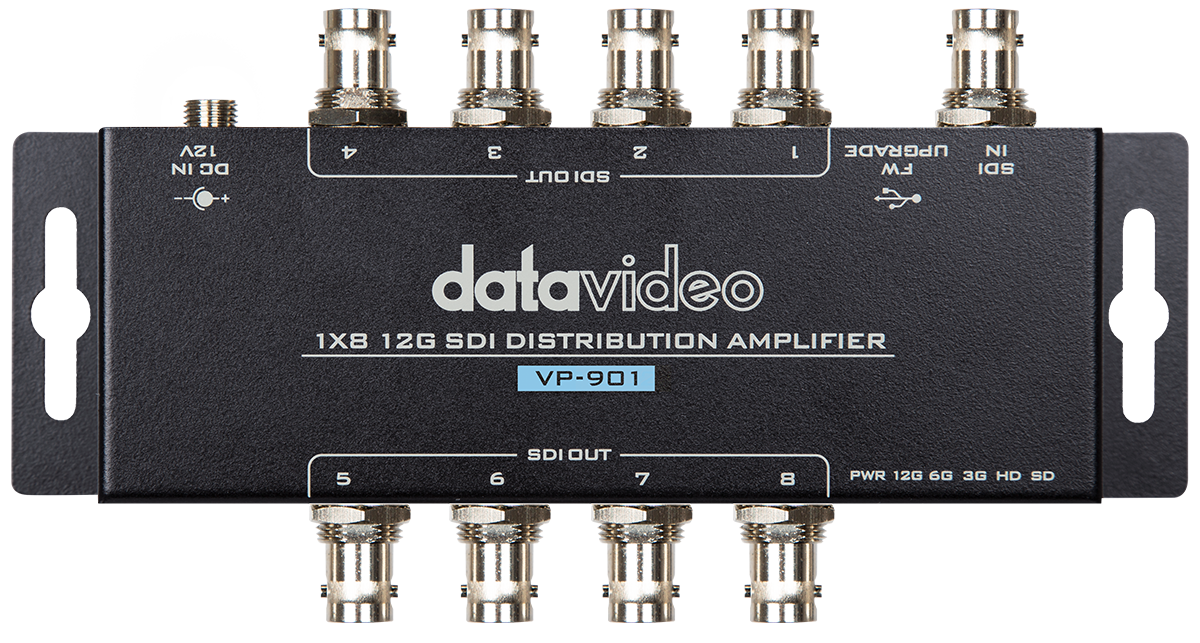

The VP-901 12G SDI Distribution Amplifier can distribute a single 12G, 4K, HD, or SD-SDI input into eight SDI outputs. It is a reliable video device, which splits an SDI, HD-SDI, 3G-SDI, 6G-SDI, or 12G-SDI video source to SDI compliant video displays simultaneously. It also supports re-clocking for a clean signal over long cable runs.
Supports 12G/6G/3G/HD/SD-SDI video with embedded Audio
To provide better performance on video and reduce the accumulated jitter problem.
With easy-to-use controls, the VP-901 is ideal for a variety of broadcast, post-production, and professional AV applications.
Automatic detection of incoming data rate without using any firmware.
Find an authorized reseller
Характеристики
| Пользовательские характеристики | |
|---|---|
| Аудиоформат | Support SDI embedded audio |
| Вес | 0.31 kg |
| Видео вход/выход | Input: 1 x BNC, Output: 8 x BNC |
| Комплектующие | 1 x VP-901 product, 1 x AD Switch DC 12V, |
| Мощность | 12V DC Jack |
| Номер модели | VP-901 |
| Обработка видео | SD/HD/3G/6G/12G-SDI |
| Полоса пропуска видео | 11.88Gpbs & 11.88/1.001Gbps |
| Рабочий диапазон температуры | 0~40 °C |
| Размер (ДхШхВ) | 167 x 50 x 24 mm |
| Стандарты HDTV | ---- |
| Формат видео | 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98, 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 525i59.94 NTSC, 625i50 PAL, |
